Products • SMPS Stacked Caps

DLA Drawing 87106 SMPS Capacitors (obsolete)
Replaced by mil-prf-49470
Click for Enhanced View/Printable PDF

Performance Characteristics

Operating Temperature Range: -55°C to +125°C.

Electric Characteristics: Rated Voltage. See part numbers table, for details.

Capacitance (+25°C): 1 kHz at +25°C. Measured in accordance with Method 305 of MIL-STD-202.

Dissipation Factor (+25°C): 2.5%, max. Measured under the same conditions as capacitance.

Temperature Coefficient:

DLA Drawing

 Bias = 0 Volt Bias = Rated Voltage Char.

MIL-PRF-49470 50 WVDC & 100 WVDC

 +15% +15%, -25% BX

MIL-PRF-49470 200 WVDC

 +15% +15%, -40% BR

MIL-PRF-49470 500 WVDC

 +15% +15%, -50% BQ

Insulation Resistance:
At +25°C, rated voltage: 100,000 Megohms or 1,000 Megohms-µF, whichever is less.
At +125°C, rated voltage: 10,000 Megohms or 100 Megohms-µF, whichever is less.

Dielectric Withstanding Voltage: 2.5 times rated voltage, except 500V rated parts at 1.5 times rated voltage.

Capacitance Tolerance: K = ±10%, M = ±20%.

Thermal Shock and Voltage Conditioning: MIL-PRF-49470

Solderability, Vibration (high frequency), Immersion, Shock (specified pulse), Moisture Resistance, Resistance to Soldering Heat, and Resistance to Solvents: In accordance with MIL-PRF-49470. These tests are performed periodically to verify compliance.

Life: When tested in accordance with Mil-STD-202 Method 208 for 1000 hours parts shall meet the requirements of MIL-PRF-49470. This test is performed periodically to verify compliance.

Marking: In accordance with MIL-STD-1285, except the part number shall contain the manufacturer's name or code and date code minimum, except case sizes 4 and 5 shall be marked with coded cap and tolerance minimum. Full marking shall be included on the package.


Presidio Part Numbers
CAP.
VALUE		 N LEADS J LEADS CASE
CODE		 A
(Max.) 1		 CAP.
VALUE		 N LEADS J LEADS CASE
CODE		 A
(Max.) 1
±10% ±20% ±10% ±20% ±10% ±20% ±10% ±20%
(µF) 50V (µF) 100V
1.0 001 002 241 242 5 .120 0.68 059 060 305 306 5 .240
1.2 003 004 243 244 5 .120 0.82 057 058 303 304 5 .240
1.5 005 006 245 246 5 .240 1.0 059 060 305 306 5 .240
1.8 007 008 247 248 5 .240 1.2 061 062 307 308 5 .240
2.2 009 010 249 250 5 .240 1.5 063 064 309 310 5 .360
2.7 011 012 251 252 5 .360 1.8 065 066 311 312 5 .360
3.3 013 014 253 254 5 .360 2.2 067 068 313 314 5 .480
3.9 015 016 255 256 5 .480 2.7 069 070 315 316 5 .480
4.7 017 018 257 258 5 .480 3.3 071 072 317 318 5 .650
5.6 019 020 259 260 5 .650 3.9 073 074 319 320 4 .360
6.8 223 224 261 262 4 .360 4.7 075 076 321 322 4 .360
8.2 021 022 263 264 4 .360 5.6 077 078 323 324 4 .480
10 023 024 265 266 4 .480 6.8 079 080 325 326 4 .480
12 025 026 267 268 4 .480 8.2 081 082 327 328 4 .650
15 027 028 269 270 4 .650 10 229 230 329 330 3 .240
18 029 030 271 272 3 .240 12 083 084 331 332 3 .240
22 031 032 273 274 3 .360 15 085 086 333 334 3 .360
27 033 034 275 276 3 .360 18 087 088 335 336 3 .360
33 035 036 277 278 3 .360 22 089 090 337 338 3 .480
39 037 038 279 280 3 .480 27 091 092 339 340 3 .650
47 039 040 281 282 3 .650 33 093 094 341 342 1 .360
56 225 226 283 284 1 .360 39 095 096 343 344 1 .360
68 041 042 285 286 1 .480 47 097 098 345 346 1 .480
82 043 044 287 288 1 .480 56 099 100 347 348 1 .650
100 045 046 289 290 1 .360 68 101 102 349 350 2 .480
120 227 228 291 292 2 .480 82 103 104 351 352 2 .650
150 047 048 293 294 2 .650

Notes:

1. All dimensions are in inches. A and B dimensions are maximum stack. See Cap Dimensions below.
CAP.
VALUE		 N LEADS J LEADS CASE
CODE		 A
(Max.) 1		 CAP.
VALUE		 N LEADS J LEADS CASE
CODE		 A
(Max.) 1
±10% ±20% ±10% ±20% ±10% ±20% ±10% ±20%
(µF) 200V (µF) 500V
.47 113 114 361 362 5 .240 .15 173 174 421 422 5 .120
.56 115 116 363 364 5 .240 .18 175 176 423 424 5 .240
.68 117 118 365 366 5 .360 .22 177 178 425 426 5 .240
.82 119 120 367 368 5 .360 .27 179 180 427 428 5 .240
1 121 122 369 370 5 .480 .33 181 182 429 430 5 .360
1.2 123 124 371 372 5 .480 .39 183 184 431 432 5 .360
1.5 125 126 373 374 5 .650 .47 185 186 433 434 5 .360
1.8 127 128 375 376 4 .360 .56 187 188 435 436 5 .480
2.2 129 130 377 378 4 .360 .68 189 190 437 438 5 .650
2.7 131 132 379 380 4 .480 .82 231 232 439 440 4 .360
3.3 133 134 381 382 4 .480 1 191 192 441 442 4 .360
3.9 135 136 383 384 4 .650 1.2 193 194 443 444 4 .360
4.7 137 138 385 386 3 .240 1.5 195 196 445 446 4 .480
5.6 139 140 387 388 3 .240 1.8 197 198 447 448 4 .650
6.8 141 142 389 390 3 .360 2.2 233 234 449 450 3 .240
8.2 143 144 391 392 3 .360 2.7 199 200 451 452 3 .360
10 145 146 393 394 3 .480 3.3 201 202 453 454 3 .360
12 147 148 395 396 3 .650 3.9 203 204 455 456 3 .360
15 149 150 397 398 1 .360 4.7 205 206 457 458 3 .480
18 151 152 399 400 1 .480 5.6 207 208 459 460 3 .650
22 153 154 401 402 1 .650 6.8 235 236 461 462 1 .480
27 155 156 403 404 1 .650 8.2 209 210 463 464 1 .480
33 157 158 405 406 2 .480 10 211 212 465 466 1 .480
39 159 160 407 408 2 .650 12 213 214 467 468 1 .650
15 237 238 469 470 2 .650
18 215 216 471 472 2 .650

Note:

1. All dimensions are in inches. A and B dimensions are maximum stack. See Cap Dimensions below.


Dimensions
 CASE
 CODE 		 DIMENSIONS 1 NO. OF LEADS3
PER SIDE
A (Max.)2 B (Max.)2 C (±.025) D (±.025) E (Max.)
1 .650 .715 .450 2.050 .500 20
2 .650 .715 .800 1.510 .870 15
3 .650 .715 .450 1.050 .500 10
4 .650 .715 .400 .400 .440 4
5 .650 .715 .250 .250 .300 3

Notes:

1. All dimensions are in inches.

2. A and B dimensions are maximum stack. See Cap Dimensions below.

3. "N" through-hole straight leads; "J" leads bent under device.

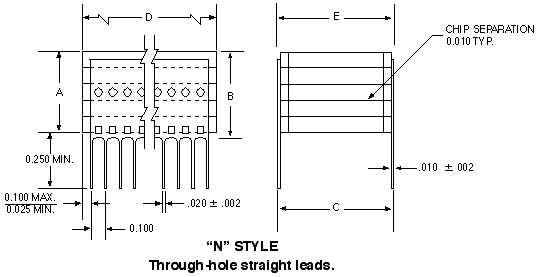

N Style Leads

J Style Leads



  Top
